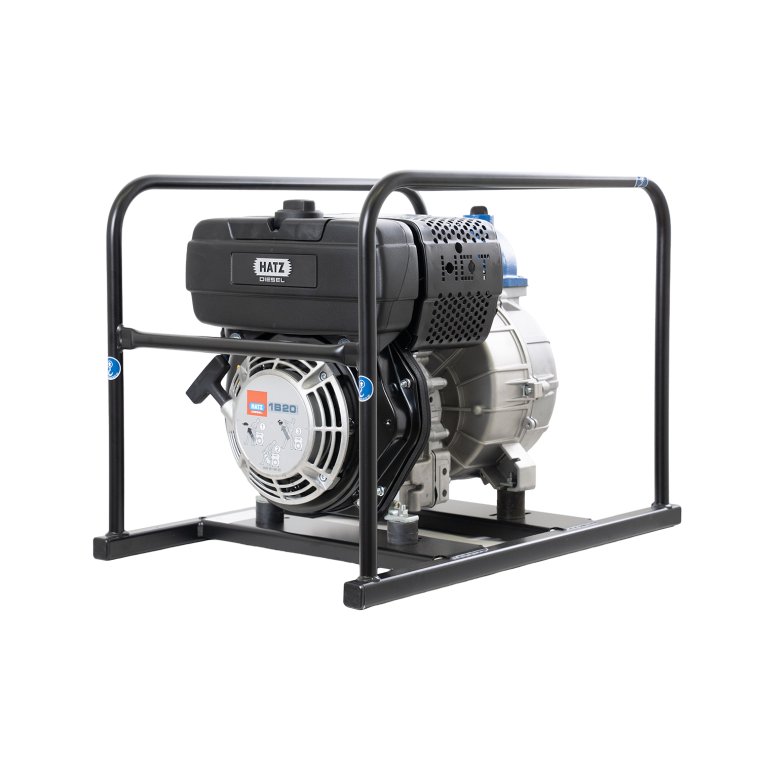

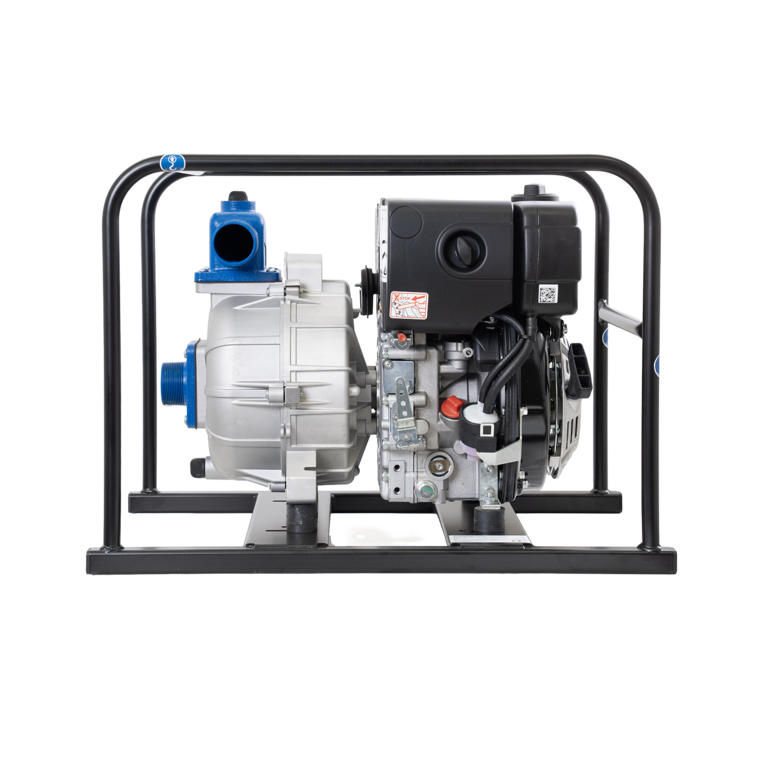

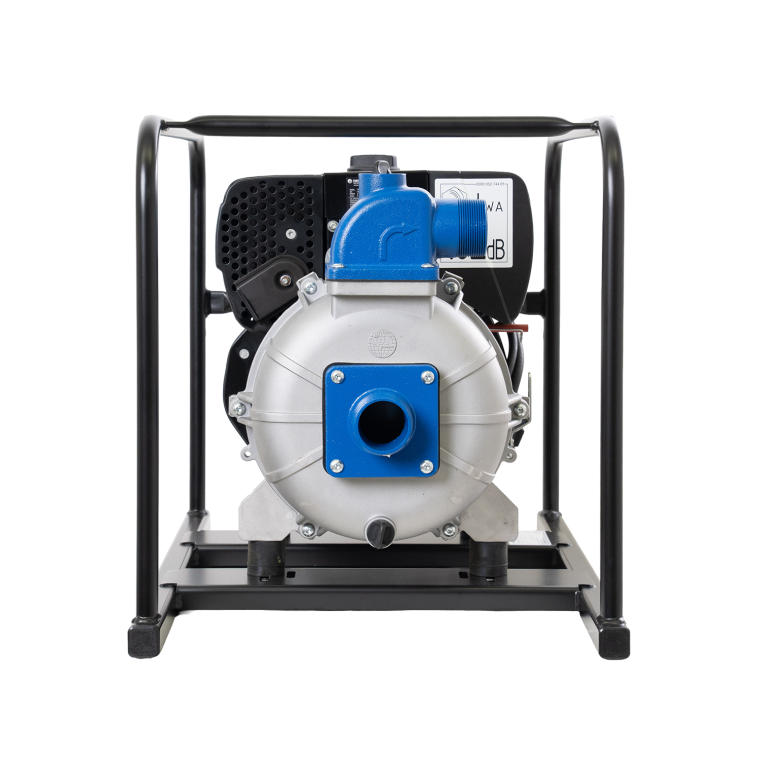

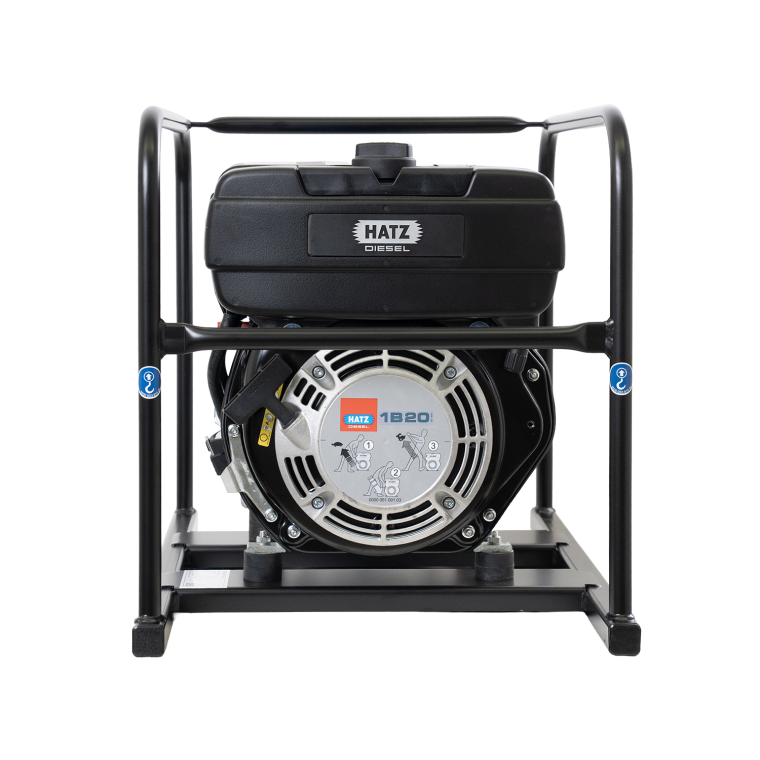

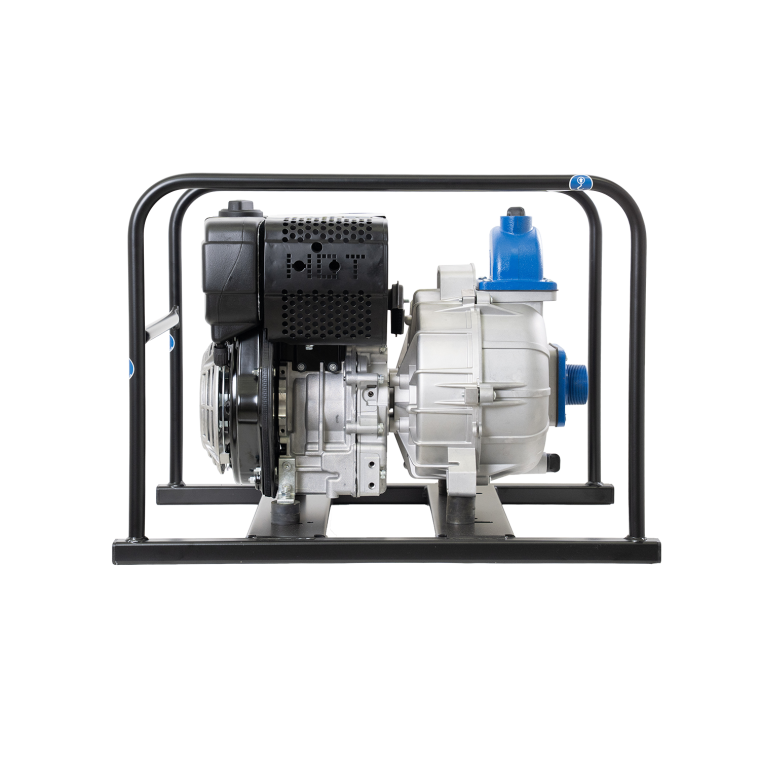

Hatz Diesel Trash Pump C2-G46, 43,100 liters, sweet water

The Hatz Diesel Trash Pump C2-G46 is a reliable and powerful companion for demanding dewatering tasks.
With an delivery rate of 43,100 liters per hour, it is ideal for sweet water pumping on construction sites, in agriculture, or for flood protection.
Thanks to its efficient Hatz diesel engine, it provides maximum performance and durability even under the toughest conditions.

Technical Specifications

• Self-priming Trash Pump
• Delivery rate: 43,100 liters/hour
• Sweetwater
• Suction height: 6 meters
• Pressure height: 29 meters
• Impeller and impeller housing made of cast iron, outer casing made of aluminum
• Direct-flanged pump
• Heavy-duty tubular frame unit
• Made in Germany

Pump Data

• Weight approx. 64 kg
• Dimensions (L x W x H): 73 x 48 x 52.3 cm
• Tank capacity: 2.5 liters
• Fuel consumption: 0.81 liters/hour
• Autonomy: 3.08 hours
• Inlet Ø 2
• Outlet Ø 2
• Solid diameter max. 25 mm

Optional accessories available on the market:

• Suction strainer with integrated quick coupling for 2-inch suction hose
• 2-inch PVC suction hose with integrated quick coupling, approx. 5 meters
• 2-inch quick coupling between suction hose and pump
• 2-inch quick coupling between pump and discharge hose
• 2-inch discharge hose with integrated quick coupling, approx. 20 meters
• 02265400 Hatz filter kit

Engine Data Hatz 1B20

• 1-cylinder air-cooled diesel engine
• Direct injection
• Displacement: 243 cm³
• Power: 3.1 kW max. at 3350 rpm
• Manual start via recoil starter
